The Condair ME provides low energy humidity control and evaporative cooling to an air handling unit or duct.

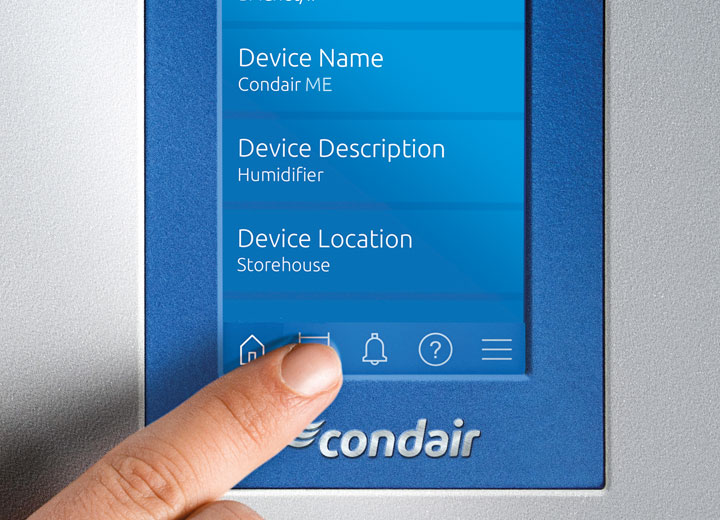

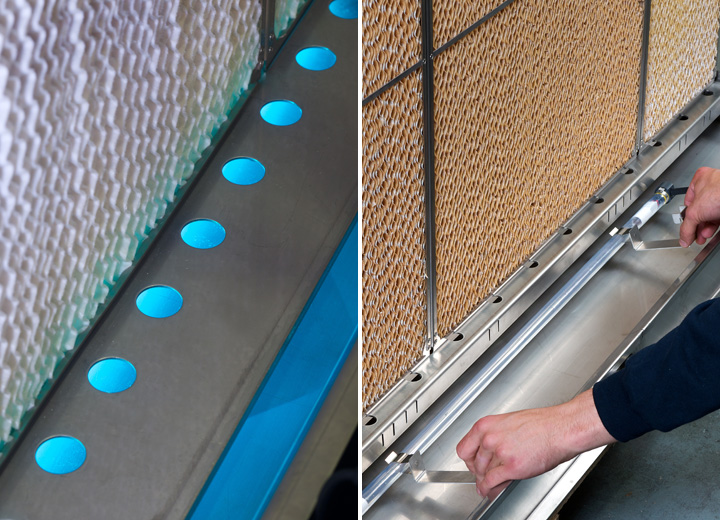

A single unit can provide up to 1,200kg/hr of humidification and 822kW of evaporative cooling to an air stream while operating on less than 1kW of electricity. As well as being economic to run the Condair ME is also easy to operate with an advanced touch screen control panel, simple to maintain with industry leading service features and employs the latest in hygiene technology.

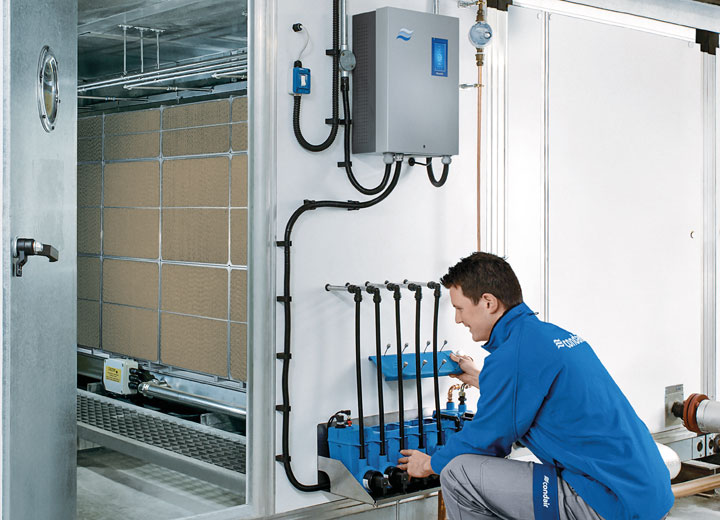

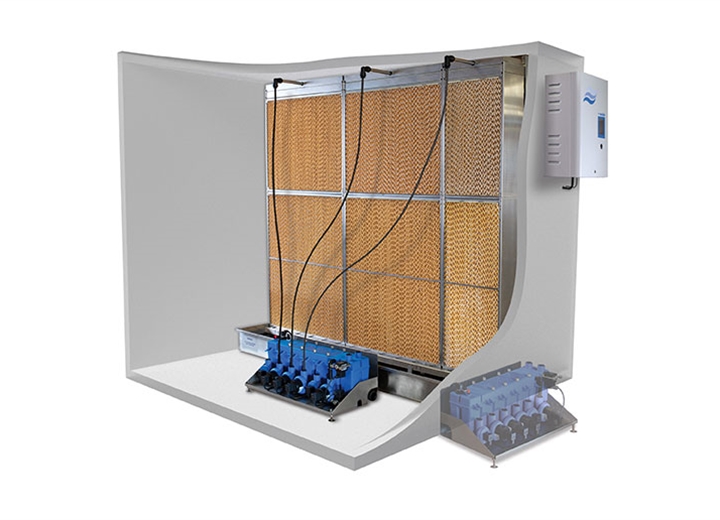

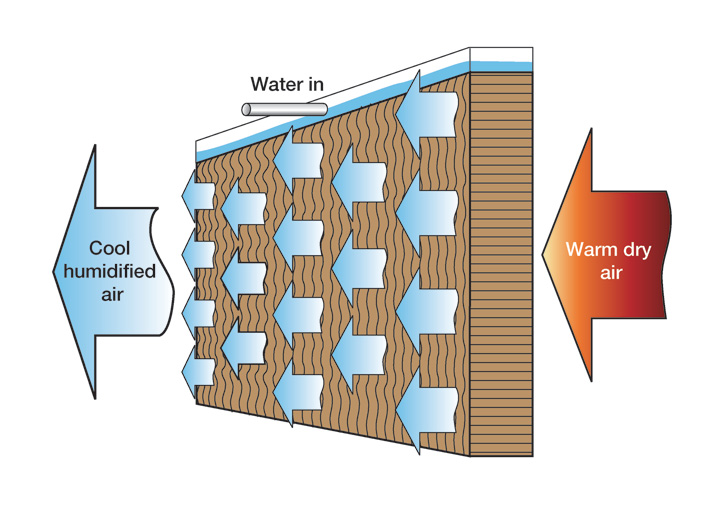

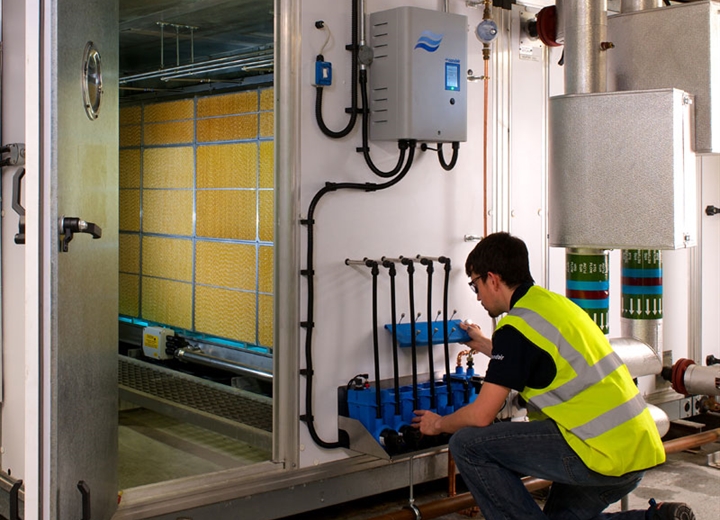

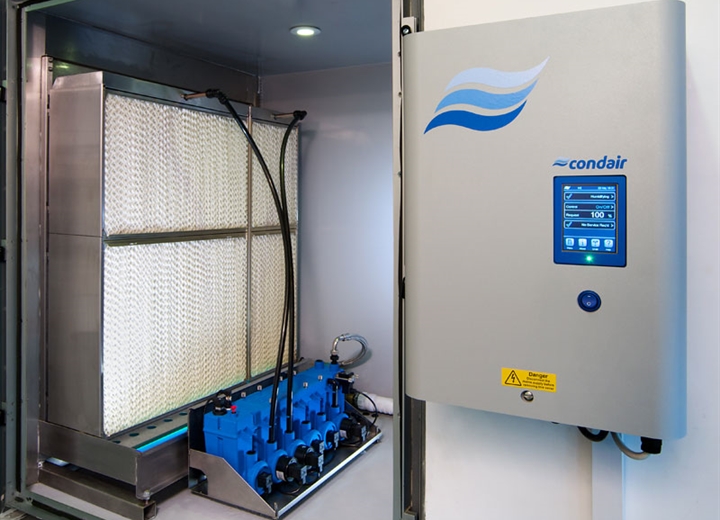

The self-contained hydraulic unit supplies water to the top of the evaporative module, located either inside or outside the duct. Exterior mounting enables most servicing to be carried out without having to shut down and enter the air handling unit.

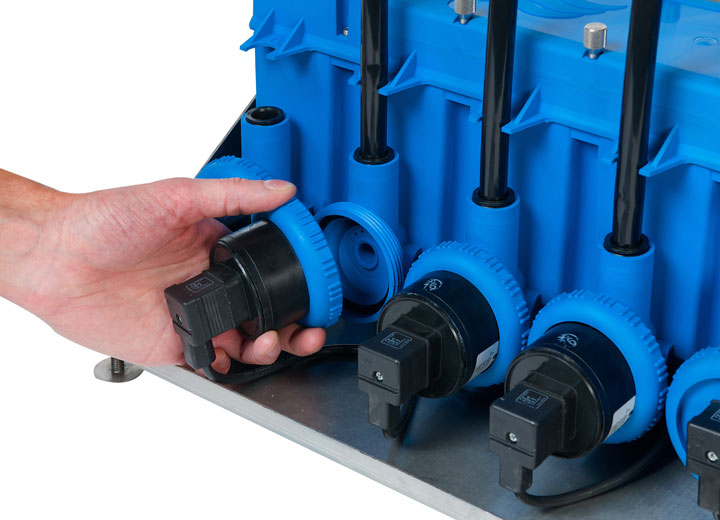

The Condair ME incorporates up to seven low energy 32W pumps rather than single large pump. This allows proportional energy consumption to system output and provides up to seven-stage control as standard.

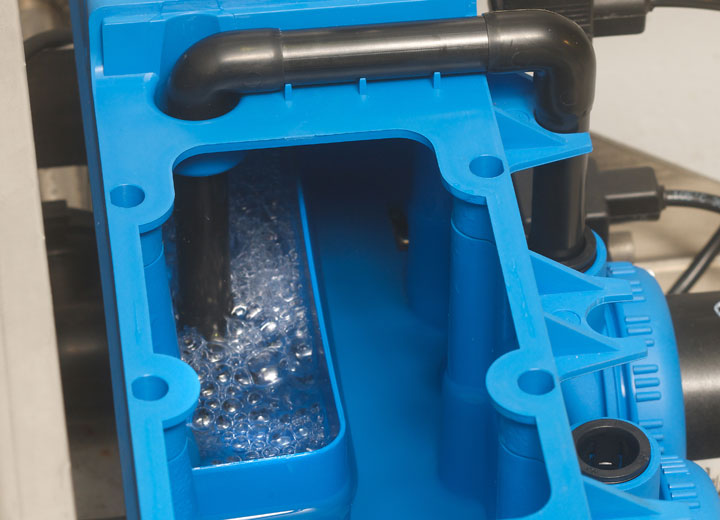

Evaporative humidifiers provide instant humidification in the AHU so they can be situated in short section lengths without the risk of wetting on bends. As minerals left behind after evaporation are regularly sent to drain, service requirements are considerably less than steam humidification.
Features and benefits
High humidification & cooling duties from a single unit
Very low energy consumption
Instant evaporation requiring very short section length
