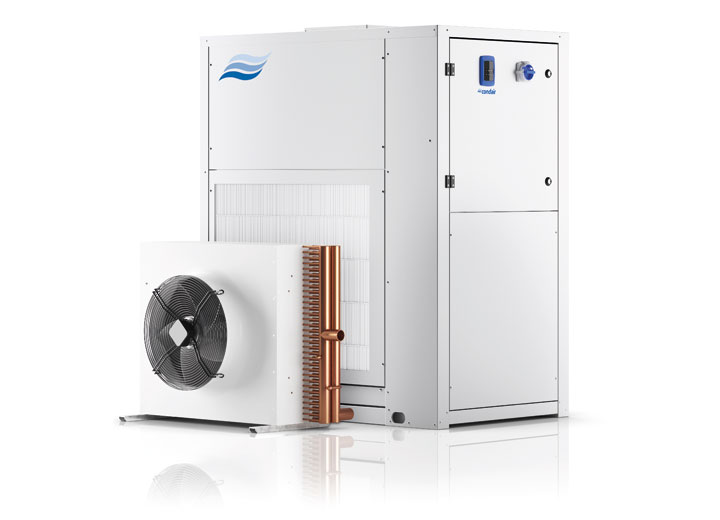

Condair DC-N condensing dehumidifier with external condenser

This range of Condair DC condensing dehumidifiers can provide air drying and heat management with the use of an external condenser.

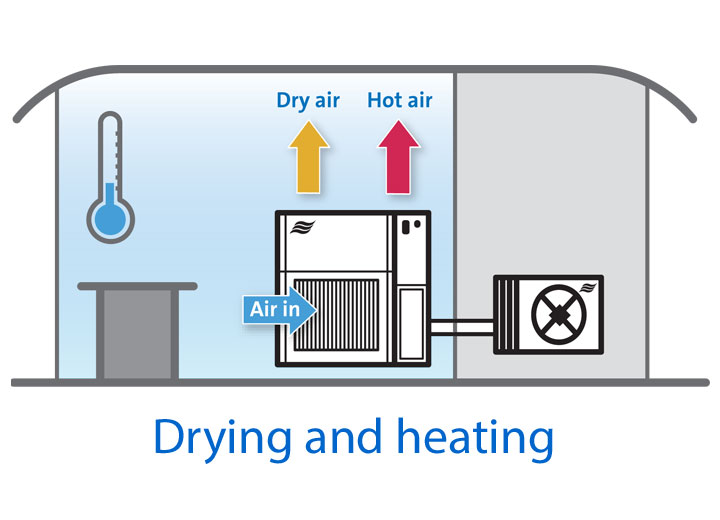

The unit can be operated with heat from the drying process being introduced to the room, or in temperature neutral mode, when the heat is exhausted externally. An external condenser can switch on when a certain room temperature is reached. This exhausts the heat from the drying process outside, allowing the dehumidifier to not only dry a room but also manage the heating to a specific set point.

Capacities range from 263 to 940 L/D (30°C/80%RH).

The housing is galvanised metal with a powder coated enamel as standard and available in stainless steel as an option.

Operation is controlled via its on-board digital display, an optional remotely located controller up to 50m away or via a BMS (Modbus).

Condair DC dehumidifiers use energy efficient EC fans with a three speed selection.

Features and benefits

  • Provides dehumidification and manages heating
  • Can deliver process air directly to a room or via an air handling unit
  • Only high quality branded components used in refrigerant circuit and R410A
  • Hot gas defrost and energy efficient EC fans as standard
  • Easily accessible internals designed for simple maintenance

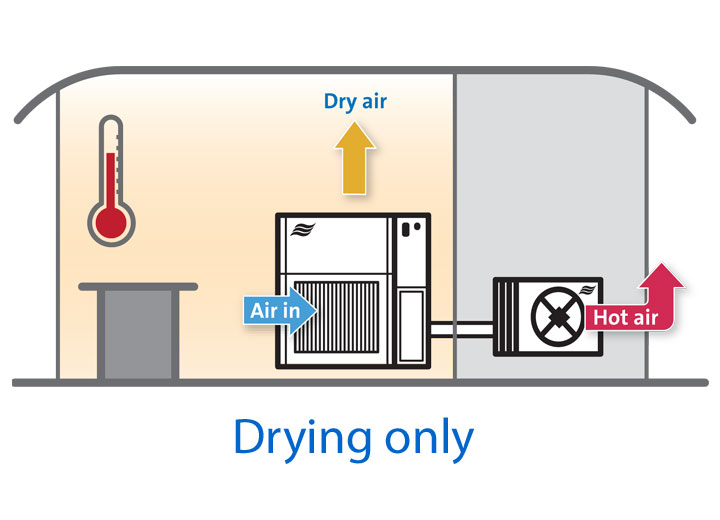

Temperature neutral dehumidifier

The external condenser unit enables this dehumidifier to remotely eject heat from the dehumidification process and provide dry air to the room without impacting on the room temperature.

Bunkermuseum Hanstholm

Erik Ansø

Museumsforvalter

“The noise level is now so low that you can talk normally in the ventilation room even though both the ventilation and a dehumidifier are running, which was one of the criteria. You certainly couldn't do that before, and it's worked out well in a concrete bunker.”

Prime Ocean

Jan Bork Nordmann

Produktion

“The dehumidification solution from Condair is one of the best investments we have made down here.

Prime Ocean is one of Europe’s largest importers of fresh cod from FAO27 and also imports large volumes of salmon. Both fresh fish products and high-quality frozen products are produced. The dehumidification solution has helped eliminate condensation problems, the daily downtime of the machines has been virtually eliminated and the maintenance work on both machines and buildings has been significantly minimized.”

Vyra Suites Hotel in Qatar

Kiran Nair

Sales Engineer at Mentor Trading

“The ceiling mounted dehumidifiers are compact in size and were fixed above the pool and spa areas. We were very satisfied with Condair’s service and their prompt response to the project.

The quality of the Condair DP-C dehumidifiers is of a high standard and they were easy to install and simple for the customer to operate. We look forward to a working with the Condair team in the future.”

T Clarke

Doug Lumb

Project Engineer

“The Condair DC 50W dehumidifier was actually chosen by our designers, as it fitted the bill perfectly for the environment. The unit size was based on the quantities of kit hung in the room to dry when the firefighters return to the Centre at the end of their training exercises.

It’s a reliable product and currently operating at the station just as expected, plus installation was really simple and didn’t take long at all, so all very good.

I would definitely specify Condair dehumidifiers for future projects.”

The Savanna

Lisa Gardshol

Founder and CEO

“We have been very happy with the performance of the Condair dehumidifiers JTR installed to comply with our drying approach. It has not only allowed us to increase production efficiency but also produce our award-winning biltong.

We have full control over the entire process and can make decisions based on the data that we recieve. This is something which we couldn’t do as well before.”

John Todd Refrigeration (JTR)

Matt Gough

Refrigeration Engineer

“The rooms need very tight environmental control but the previous strategy introduced outside air to help lower temperatures when needed. JTR redesigned the drying rooms and installed Condair DC-N dehumidifiers.

The dehumidifiers, located in the rooms, both dry and heat the air to the required condition, resulting in a fully sealed area and a consistently controlled drying process.”
